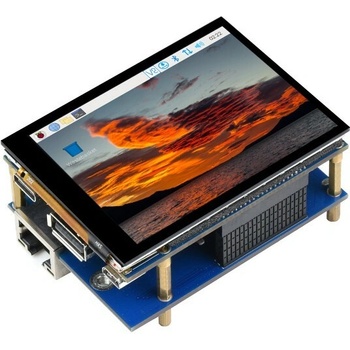

Waveshare 2.8″ Touch Screen Expansion For Raspberry Pi Compute Module 4, Without Interface Expander
Podobné produkty
Popis produktu
Parametre produktu
Produkt nemá žiadne parametre.
Parametre produktu
Produkt nemá žiadne parametre.
Popis produktu
2.8″ Touch Screen Expansion For Raspberry Pi Compute Module 4, Optical Bonding Display, Optional Interface Expander 2.8″ Touch Screen Expansion For Raspberry Pi Compute Module 4, Optical Bonding Display, Gigabit Ethernet, USB2.0, Optional Interface Expander 2.8″ Touch Screen Expansion Board
Designed for Raspberry Pi Compute Module 4
Ordering Options
Touch screen expansion board only
Allows directly attaching the CM4, providing 2.8″ IPS touch screen for all variants of CM4, also supports camera and video output.
Touch screen expansion board + interface expander
The touch screen expansion board and an additional interface expander, with Gigabit Ethernet port, M.2 slot for connecting communication module or SSD, and more USB ports.
Please check the Package Content section for exact part list.
Optical Bonding Touch Screen 2.8″ Display With 5-Point Capacitive Touch Control, Better Touch Experience From The Optical Bonding Screen, Together With 6H Toughened Glass Panel, More Safe To Use
Just Slightly Larger Than CM4 for reference ONLY, CM4 is NOT included.
Touch Screen Expansion Board Introduction
CM4 SOCKET suitable for all variants of Compute Module 4
USB
USB 2.0 × 1
CONNECTOR
MIPI CSI 22PIN 0.5mm camera connector
DISPLAY 2.8″ Optical Bonding screen, 480 × 640 pixels, 5-point capacitive touch, toughened glass panel
VIDEO micro HDMI × 1, supports 4K 30fps output
STORAGE
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT 5V
Optional Interface Expander Introduction
NETWORKING
Gigabit Ethernet RJ45
M.2 M KEY, support NVME SSD or communication module
USB
USB 2.0 × 3
Application Example
Suitable For Raspberry Pi Applications Or Other Industrial Occasions Requiring Multi-Function Peripherals
Outline Dimensions
Resources & Services
WIKI: CM4-DISP-BASE-2.8A
PACKAGE CONTENT
Weight: 0.044 kg
- Touch screen expansion board x1
- Screws pack x1
- OPTIONS Interface expander x1
1 2 3
